Alloy C-276 DIN2.4819 Hastelloy C276 bolt nut washer DIN933 DIN934
DIN125
1. About Hastelloy C276
Hastelloy Alloy C276 Bolts, Studs & Nuts Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C276 | 2.4819 | N10276 | ХН65МВУ | - | NW 0276 | ЭП760 | NiMo16Cr15W |
Hastelloy C276 Bolts, Studs & Nuts Chemical Composition
| Grade | Ni | Mo | Cr | Fe | W | Co | Mn | C | v | P | S | Si |
| Hastelloy C276 | Bal | 15 – 17 | 14.5 – 16.5 | 4 – 7 | 3 – 4.5 | 2.5 max | 1.0 max | 0.01 max | 0.35 max | 0.04 max | 0.03 max | 0.08 max |
Hastelloy C276 Bolts, Studs & Nuts Mechanical & Physical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm33 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40% |
Hastelloy Alloy C276 bolt nut washer stud Application Industries
•Off-Shore Oil Drilling Companies
•Power Generation
•Petrochemicals
•Gas Processing
•Specialty Chemicals
•Pharmaceuticals
•Pharmaceutical Equipment
•Chemical Equipment
•Sea Water Equipment
•Heat Exchangers
•Condensers
•Pulp and Paper Industry
2. Hastelloy C276 bolt nut washer stud specification
| Material | Size | Length | Specification |
Hastelloy C276 Bolt nut washer stud | M 02 to M 160 | 3 mm to 200 mm | |
| Hastelloy Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | DIN 933, DIN 931, ANSI, JIS standards |
| Hastelloy C276 bolt nut washer stud In Form of: | - Hex
- Square
- Round
- Threading as per Gauge Etc.
|
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Hastelloy C276 bolt nut washer stud Packing: | IN BULK :canton/pallet, Small Boxes/carton/ pallet, or customer
request |
| Hastelloy C276 bolt nut washer stud Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Property Class: | - For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D,
F593G, F593H
- For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H,
A2-035, A4-040
- For SHCS: F837B, F837C, F837E, F837
- For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G,
F593H, B8, B8M CL1 & CL2
|
| Production process | M2-M24: Cold Forging, hot forging M24-M100,machining and CNC for
Customized connecting element |
| Hastelloy Fasteners Grades: | Hastelloy C22 Fasteners, Hastelloy C276 Fasteners, Hastelloy
B2 Fasteners, Hastelloy B3 Fasteners, Hastelloy X Fasteners |
3. HT pipe can offer best price on following Alloy C276 bolt nut
washer stud screw
| Hastelloy C276 Bolts | Hastelloy C276 Round head square neck bolt | Hastelloy C276 Washers |
| Hastelloy C276 Nuts | Hastelloy C276 Hexagon socket head cap screw in full thread and
half thread | Hastelloy C276 Threaded Rod |
| Hastelloy C276 Screws | Hastelloy C276 Hexagon wood screw | Alloy C276 Bolts |
| Hastelloy C276 Studs | Hastelloy C276 Hexagon socket button head screw | Alloy C276 Nuts |
| Alloy C276 Studs | Hastelloy C276 Hexagon socket button flange screw | Alloy C276 Threaded Rod |
| Alloy C276 Washers | Hastelloy C276 Hexagon socket counter sunk head cap screw in full
thread and half thread | ASTM B574 UNS N10276 Hastelloy C276 Fasteners |
| UNS N10276 Fasteners | Hastelloy C276 square nuts | Werkstoff Nr. 2.4819 fasteners |
| Hastelloy C276 Hex Nut | Hastelloy C276 square weld nuts | hastelloy C276 2.4819 UNS10276 fasteners |
| hastelloy C276 UNS N10276 2.4819 fasteners | Hastelloy C276 hexagon weld nuts | Hastelloy C276 special alloy hex nut, |
| hastelloy C276 u bolt | Hastelloy C276 thick nylon nuts | hastelloy C276 stud bolt |
| Hastelloy 2.4819 inside hexagonal bolt | Hastelloy C276 hexagon flange nuts | Hastelloy C276 half thread bolt |
| bearing hastelloy 2.4819 screws and bolts | Hastelloy C276 threaded rods | Hastelloy C276 Nuts Fastener |
| hastelloy C276 hex bolts | Hastelloy C276 dowel screws | UNS N10276 Hastelloy C276 half threaded hex bolt |
| Hastelloy C276 Flat Washer | Hastelloy C276 dowel pin | Hastelloy C276 Spring |
| Hastelloy C276 Countersunk Washer | Hastelloy C276 Tooth Lock Washer | Hastelloy C276 Hexagon head screw |
| Hastelloy C276 Hexagon head bolt | Alloy C276 Hexagon Bolt | Hastelloy Alloy C276 Hex Bolts |
4. Hastelloy C276 bolt nut washer stud Test Certificates
We provide Manufacturer TC (Test Certificate) in accordance to EN
10204/3.1B, Raw Materials Certificate, 100% Radiography Test
Report, Third Party Inspection Report. We also provide Standard
certificates like EN 10204 3.1 and additional requirement like.
NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
ASME, ASTM and API Monel K-500 bolt nut washer stud Value Added
Services
Material Testing:
We ensure that all our materials go through strict quality tests
before dispatching them to our clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
5. Hastelloy C276 bolt nut washer stud screw FAQ
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality
controlling from the beginning to the end.
Mill Test Certificate is supplied with shipment. If needed, a Third
Party Inspection is acceptable.
Q:May I have some samples before bulk order?
A:Yes, of course. samples are free but you have to pay the courier.
Q:Can we visit your Company?
A:Surely. Welcome to China and we will be honored to have a
customer and friend.
Q:What is the payment terms?
A:T/T, L/C ,Western Union,etc.
Q:What's your delivery time?
A:For stocks, we can send the goods to loading port within 7 days
after receiving your deposit.
For production period, it usually needs about 10days- 60days after
receiving the deposit.
Q:Is it OK to mark my logo on your products?
A:Yes. OEM and ODM are available for us.

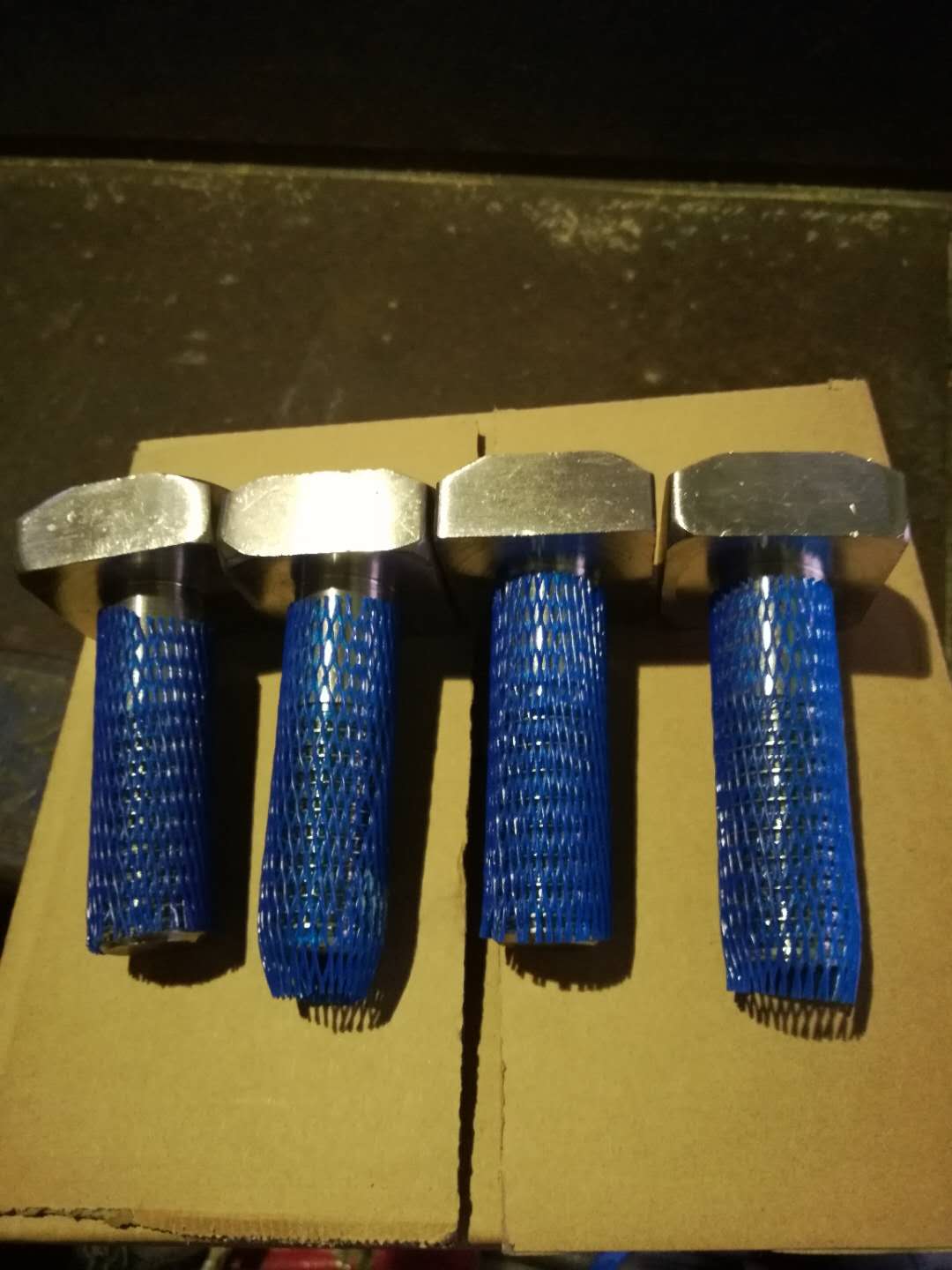

6. Hastelloy C276 bolt nut washer stud screw package
